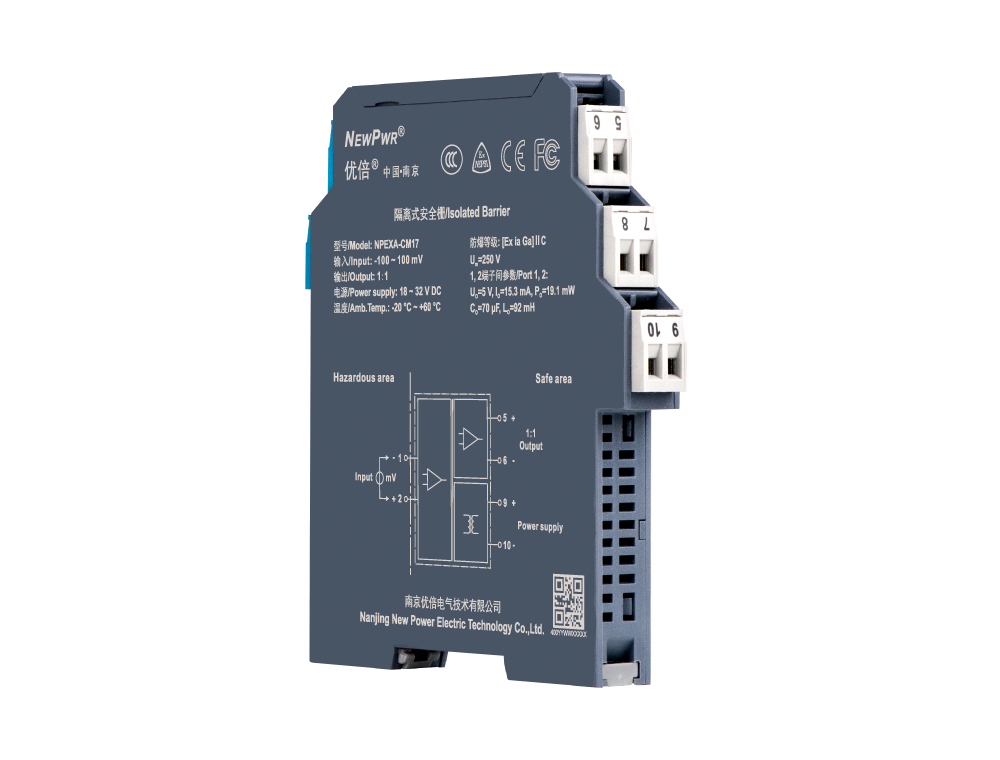

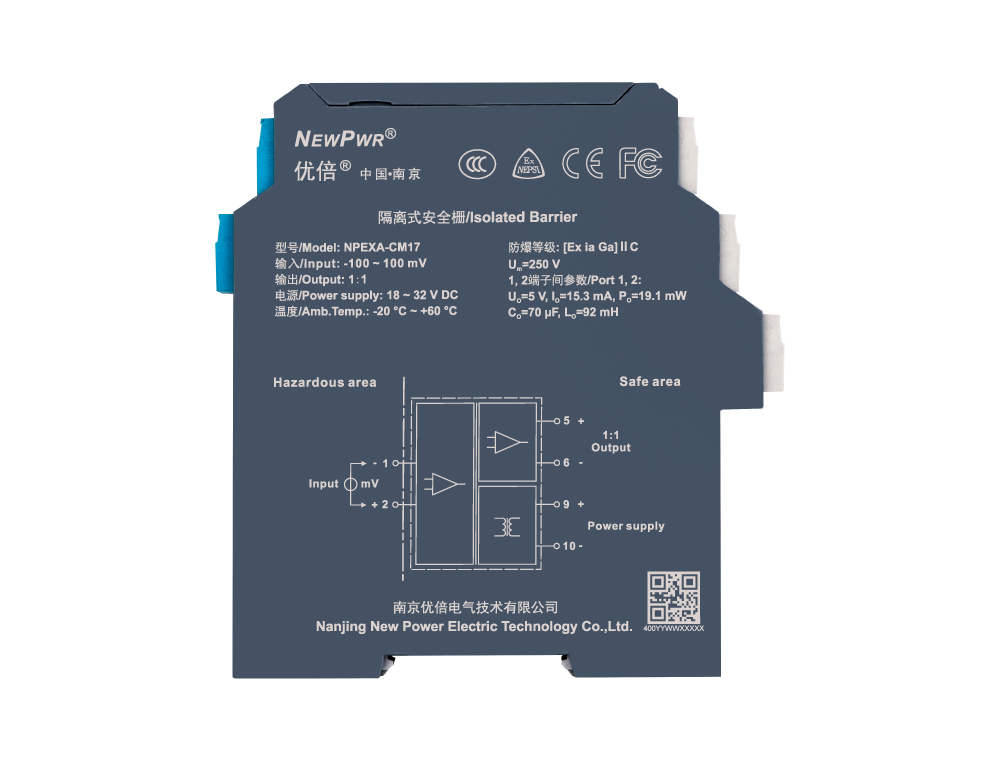

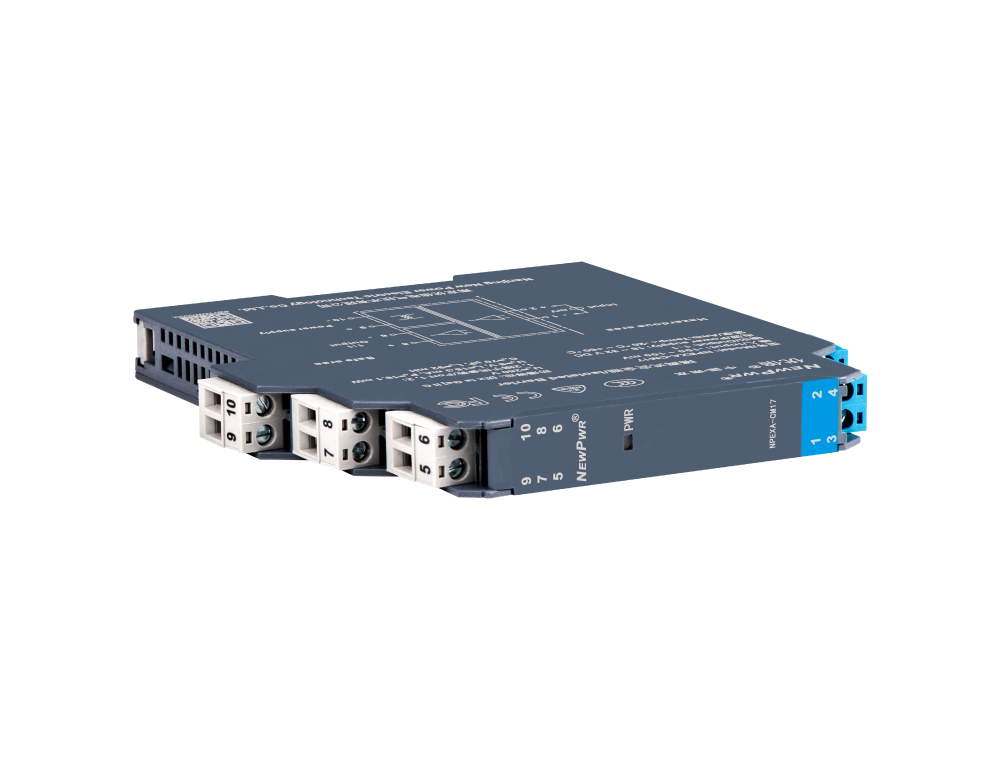

NPEXA-CM17

Millivolt input isolated barrier, it transfers the millivolt signals from a hazardous area to a safe area. It needs an independent power supply. The input, output, and power supply are galvanically isolated from each other. It has the function of setting over range output when the input is disconnected.

Input signal

Millivolt(-100~100mV)

Output signal

1 : 1

Channels

1 input/1 output

Power Supply Mode

24VDC terminal power supply

Share

NPEXA-CM17

Product details Technical data Accessory Download

contrast

【Core technology】


【Installation and disposal】

C系列注塑外殼安裝.gif C系列注塑外殼拆卸.gif

Installation Disposal

【Technical data】 Supply Input Output Transfer characterisics General parameters EMC data Operating conditions 【Mechanical specifications】 Mechanical specifications 【Certified data】 Certified data

Supply

Power supply

18 ~ 32 V DC

Input

Input signal	-100 ~ 100 mV
Insulation resistance	≥ 20 MΩ

Output

Output signal	1 : 1
Output resistance	55 Ω

Transfer characterisics

Compensation accuracy	0.05 %F.S.
Temperature drift	0.005 %F.S. /℃

General parameters

Response time	≤ 2 ms
Power dissipation	0.4 W

EMC data

Electromagnetic compatibility	IEC 61326-3-1
Dielectric strength	≥ 3000V AC (intrinsically safe side / non-intrinsically safe side); ≥ 1500V AC (Power supply /non-intrinsically safe side)
Insulation resistance	≥ 100 MΩ (Input /Output/Power supply)

Operating conditions

Operation temperature	-20 ℃ ~ +60 ℃
Storage temperature	-40 ℃ ~ +80 ℃
Suitable location	Mounting in safe area, and connected to the intrinsic safety apparatus in hazardous area zone 0, zone 1, zone 2, ⅡA, ⅡB, ⅡC, T4 ~ T6

Mechanical specifications

Connection method	Screw connection
Dimension	12.8mm (W) × 110mm (H) × 117mm (D)
Mounting type	DIN35 mm

Certified data

Product approvals	NEPSI, CE, FCC, CCC
Ex marking	[Ex ia Ga]ⅡC
Um	250 V
Uo	5 V (Terminals 1, 2)
Io	15.3 mA (Terminals 1, 2)
Po	19.1 mW (Terminals 1, 2)
Co	70 μF (Terminals 1, 2)
Lo	92 mH (Terminals 1, 2)

NPPB-DIN Bus rail power supply

35mm standard rail

NPPB-BS210 I/O terminal base

Connect the rail BUS base, external power is introduced through the terminal block of the base. If a redundant power module is selected, this terminal can be left unselected.
